Versafold Valve Key is an innovative product designed and built by an entirely new method to improve the inconvenience of existing valve keys and to provide a robust structure and new features.
Go to buy the product

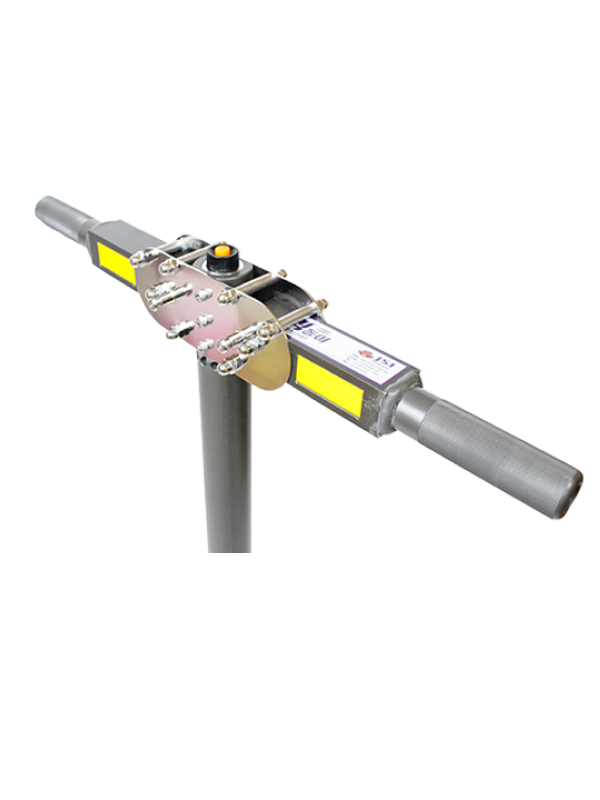

Reliable Durability
It is made by cutting high-strength aluminum alloys and stainless steel altogether, to ensure strong durability and corrosion resistance. Further, it is made to withstand strong torque during operation.

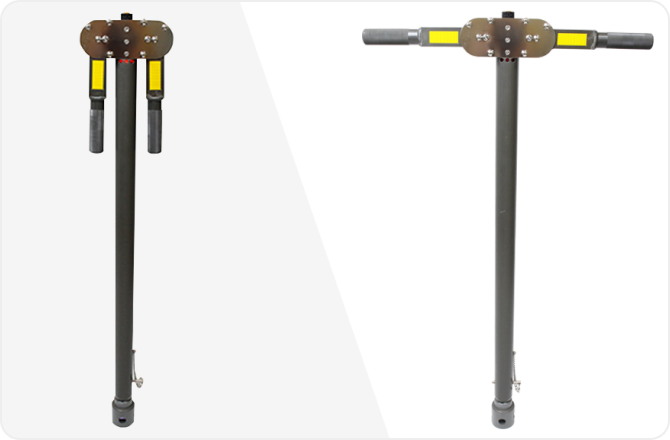

The foldable structure makes moving and loading convenient.
Not only can the handle be folded thanks to a foldable structure, but the entire length can be adjusted, making it convenient to load on small cars.
- Handle width
- 620mm(Max) → 200mm(Min)
- Overall length
- 1040mm(Min) → 1640mm(Max)
Having only one Versafold Valve Key is enough.

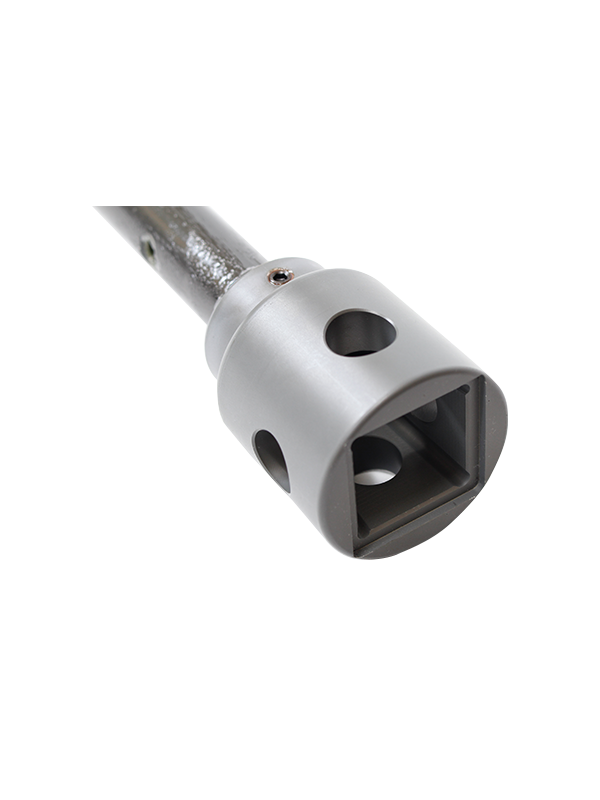

The adaptor can be mounted on the head joint of the valve, allowing the operation of various valves such as the exponential Gate Valve, Curb Box valve, and the fire valve with a single key.

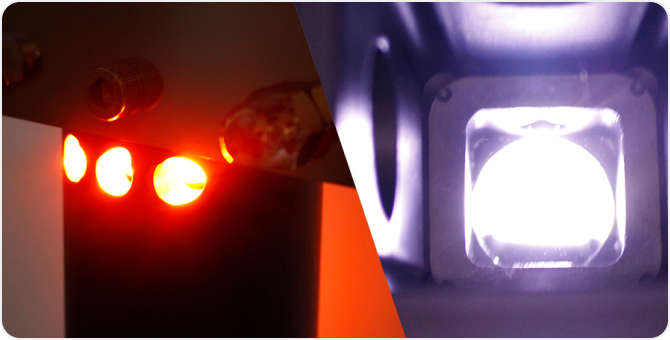

The installation of safety light and search light allows you to work safely and conveniently even at night.
The safety light prevents collisions when working on the road at night, and search lamp is installed on the valve head connector so that valves that are buried deep in the dark ground can be found and fitted easily.
Reliable performance and quality recognized
Versafold Valve Key is handmade one by one through the in-house technology of JS Integer, which has accumulated more than 20 years of expertise in the field of machine/apparatus manufacturing.
Furthermore, Versafold Valve Key obtained a domestic patent for the originality of product structure, and won the silver prize at the Seoul International Invention Fair in recognition of the quality and superior technology of the product.

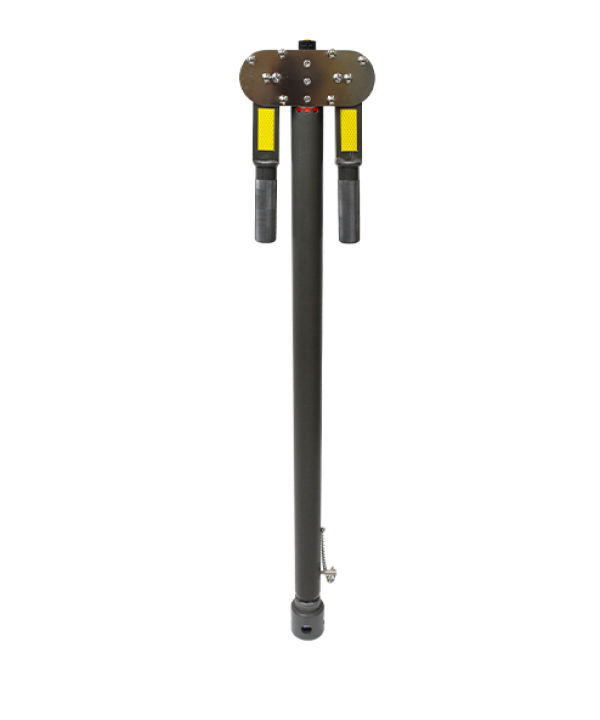

Lightweight type R-TYPE
The robust design can withstand strong torque.
| Length | Minimum : 1,040 / Maximum : 1,640 (mm) |
|---|---|
| Width | Folding : 200 / Spread : 620 (mm) |
| Weight | 6.7 kg |
| Allowable Torque | 24 kgf/m |
